Atlantech
Lux One-Box

For lighting poles buried type
without integrated inspection box

Download PDF
atlantech lux
Box diameter 219 mm
Box height  500 mm
Screw height 1000 mm
Total height 1500 mm
Total weight 15 kg

Installer Atlantech Lux One-Box SHORT

Piastra installazione One Box2

Box diameter 219 mm
Box height  800 mm
Screw height 1200 mm
Total height 2000 mm
Total weight 25 kg

Installer Atlantech Lux One-Box SHORT

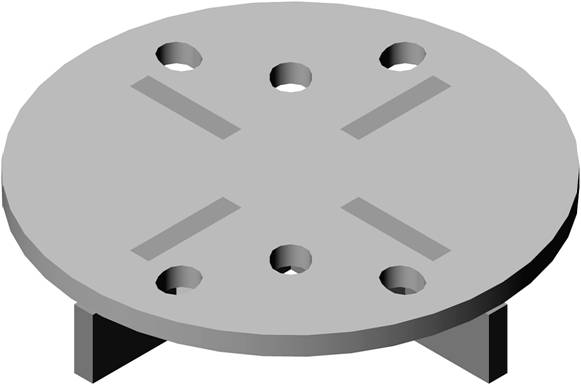

Piastra installazione One Box3

Box diameter 323 mm
Box height  800 mm
Screw height 1500 mm
Total height 2300 mm
Total weight 35 kg

Installer Atlantech Lux One-Box SMALL

Piastra installazione One Box4

SHORT 1500

Box Ø 219mm H. 500mm

lux SHORT 1500 version

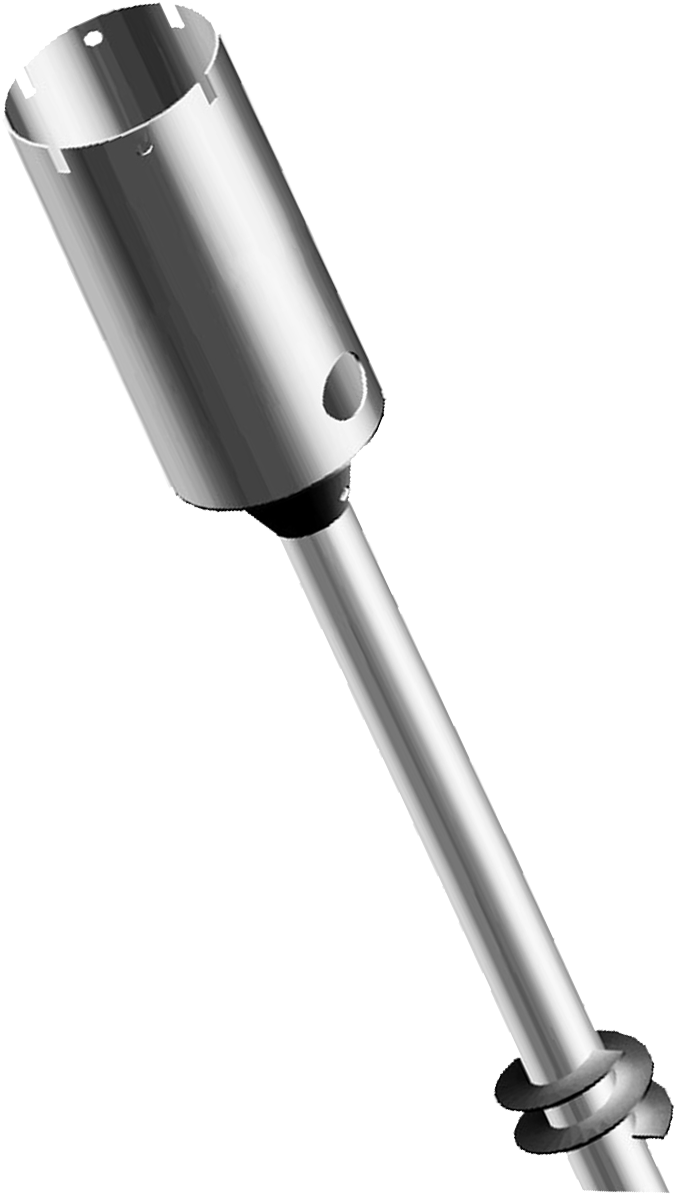

The Atlantech Lux One-Box Short 1500
foundation is designed for the installation
of lighting poles, buried type, with a max.
base diameter of 102mm.

lux SHORT 1500 version

SHORT 2000

Box Ø 219mm H. 800mm

lux SHORT 2000 version

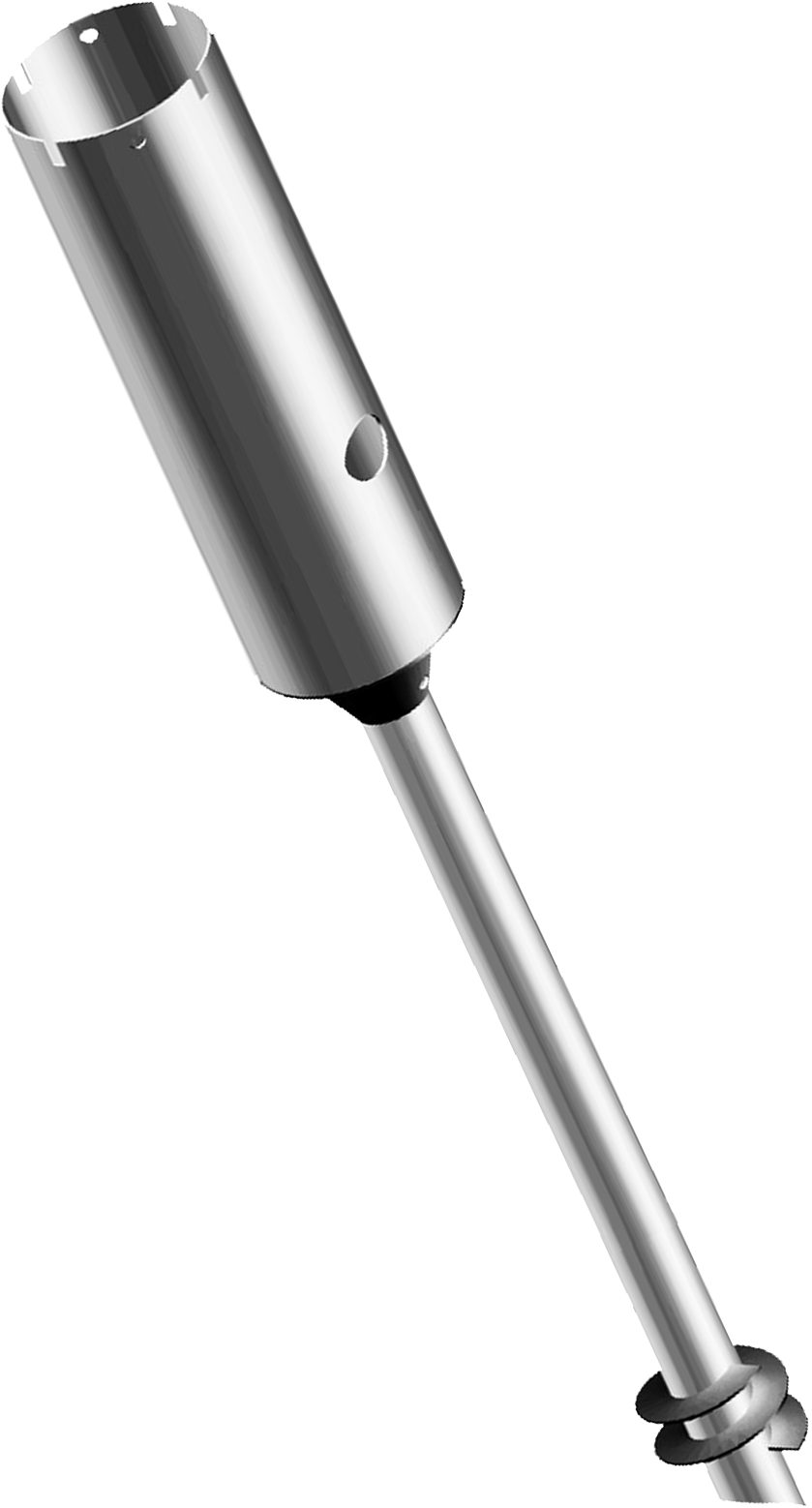

The Atlantech Lux One-Box Short 2000
foundation is designed for the installation
of lighting poles, buried type, with a max.
base diameter of 188mm.

lux SHORT 2000 version

SMALL 2300

Box Ø 323mm H. 800mm

lux SMALL 2300 version

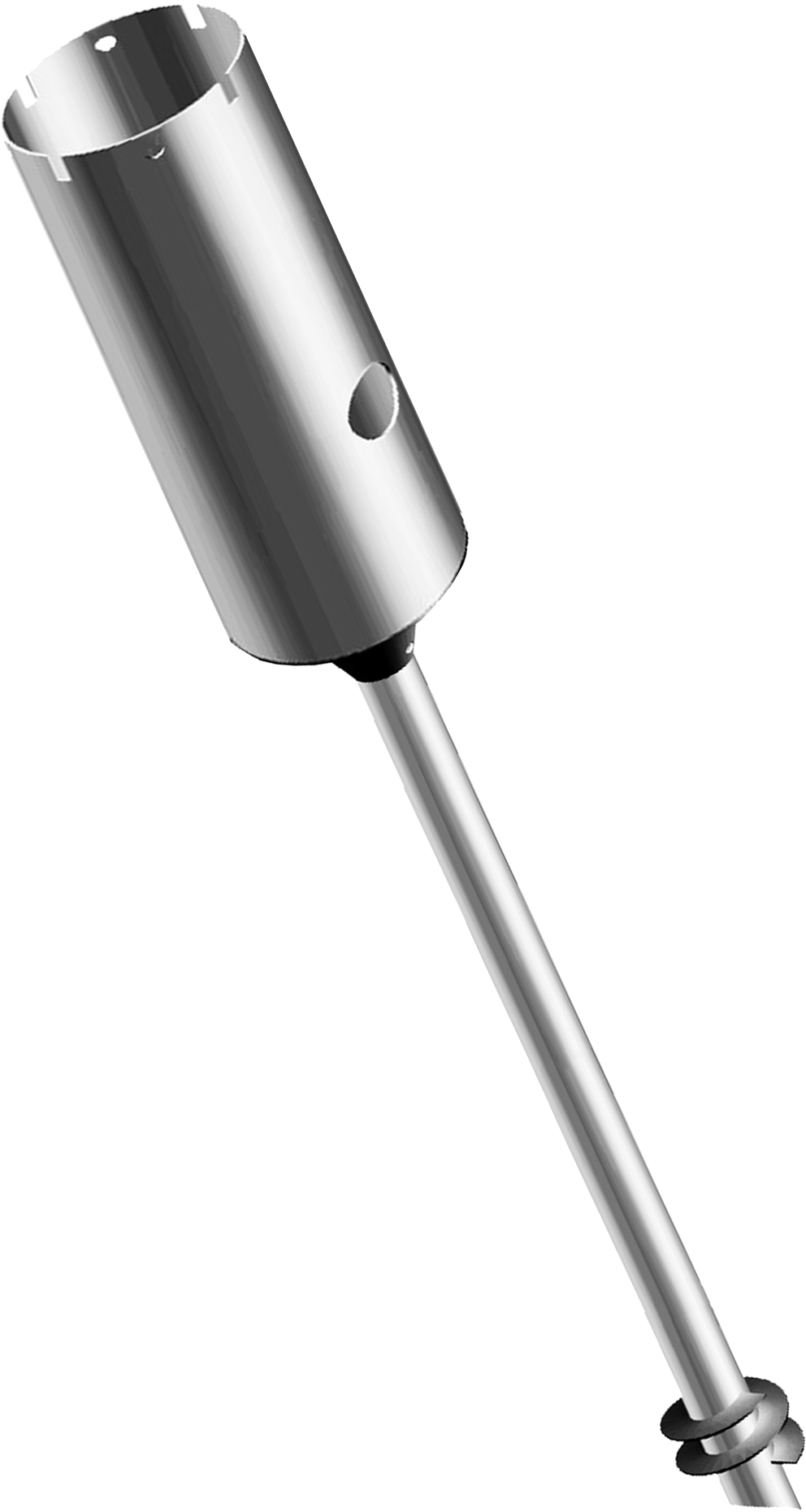

The Atlantech Lux One-Box Small 2300
foundation is designed for the installation
of lighting poles, buried type, with a max.
base diameter of 240mm.

lux SMALL 2300 version
