Atlantech
Lux Plate

For the installation of lighting
poles with base plate
with wiring connection space

Download PDF
atlantech lux
Square plate 260mm
Plate thickness 12mm
Diameter of holes 20mm
Spacing between holes 170-200mm
Box diameter 219 mm
Box height  500 mm
Screw height 1000 mm
Total height 1500 mm
Total weight 19 kg





Installer Atlantech Lux Plate

installer lux plate

Square plate 300mm
Plate thickness 15mm
Diameter of holes 20mm
Spacing between holes 200-220mm
Box diameter 219 mm
Box height  800 mm
Screw height 1200 mm
Total height 2000 mm
Total weight 25 kg

Installer Atlantech Lux Plate

installer lux plate5

Square plate 400mm
Plate thickness 20mm
Diameter of holes 20mm
Spacing between holes 270-300mm
Box diameter 323 mm
Box height  800 mm
Screw height 1500 mm
Total height 2300 mm
Total weight 35 kg

Installer Atlantech Lux Plate

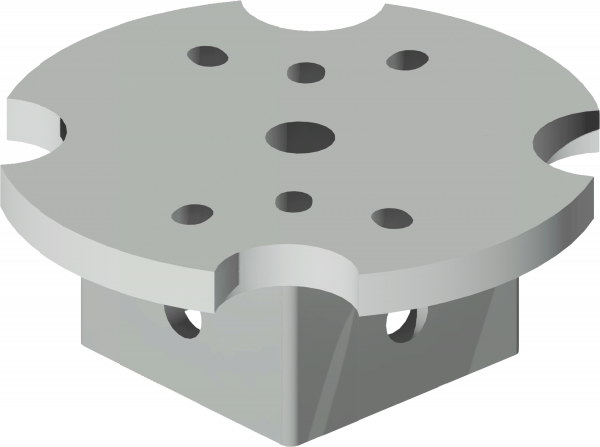

installer lux plate6

PLATE 170-200

Plate 260x260mm - holes Ø 20mm spacing 170-200mm

lux PLATE 170-200 version

The Atlantech Lux Plate 170-200 foundation
is designed for the installationin of lighting
poles with base plate with spacing between
holes of 170 or 200mm, with a max. base
diameter of 102mm

lux PLATE 170-200 version

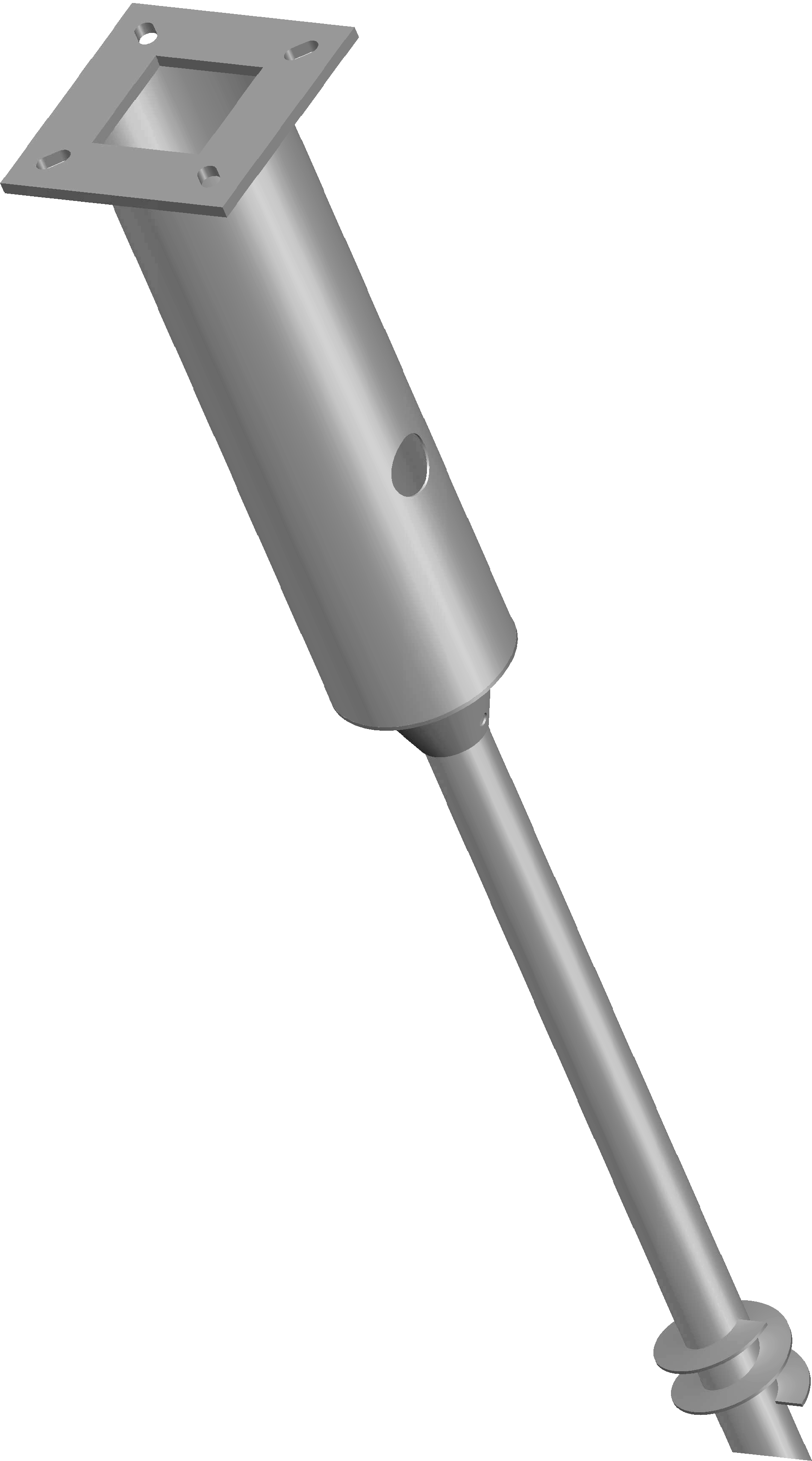

PLATE 200-220

Plate 300x300mm - holes Ø 22mm spacing 200-220mm

lux PLATE 200-220 version

The Atlantech Lux Plate 200-220 foundation
is designed for the installationin of lighting
poles with base plate with spacing between
holes of 200 or 220mm, with a max. base
diameter of 188mm

lux PLATE 200-220 version

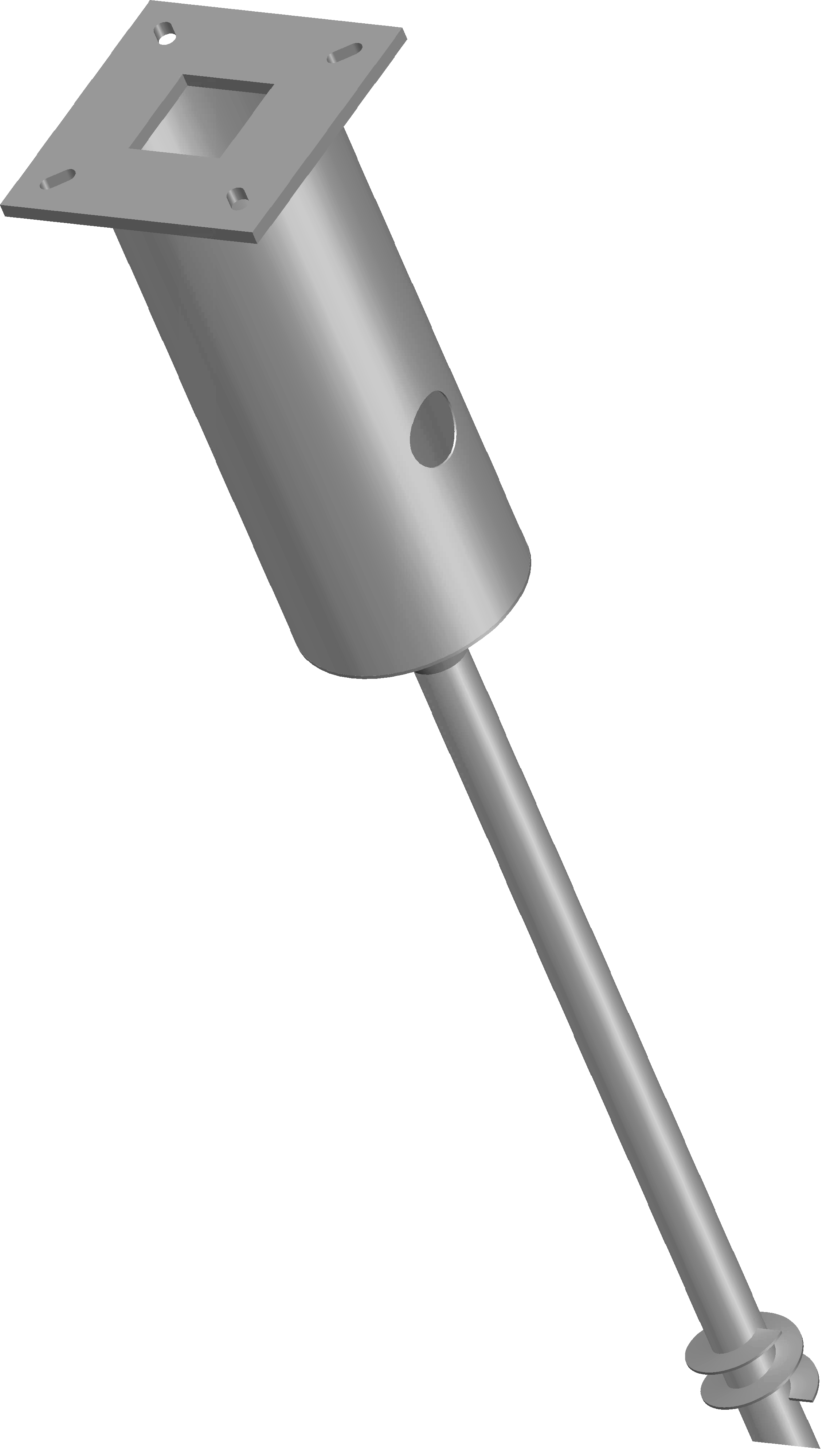

PLATE 270-300

Plate 400x400mm - holes Ø 20mm spacing 270-300mm

lux PLATE 270-300 version

The Atlantech Lux Plate 270-300 foundation
is designed for the installationin of lighting
poles with base plate with spacing between
holes of 270 or 300mm, with a max. base
diameter of 240mm

lux PLATE 270-300 version
